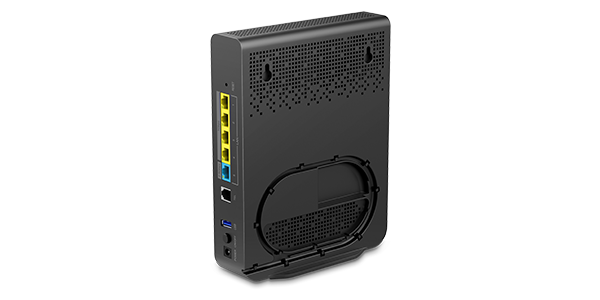

NP7287G is a high-performance GPON ONT designed to deliver ultra-fast data, voice, and video services for individual users, SOHO, and small businesses. With built-in intelligent routing capabilities, it allows users to effectively manage bandwidth, connected devices, and online time, offering a smart and efficient networking experience.
|
Wireless Standards |
IEEE802.11a/n/ac/ax/be @5GHz, IEEE802.11b/g/n/ax/be @2.4GHz |
|
Signal Rate |
5GHz (4x4): Up to 5764Mbps, 2.4GHz (4x4): Up to 1376Mbps |
|
Interface |

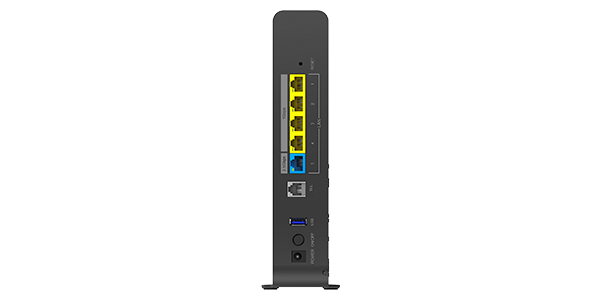

1 x SC/APC PON Port 4 x 10/100/1000 Mbps LAN Ports 1 x 2.5 Gbps LAN port 1 x USB3.0 Port 1 x FXS Port 1 x DC Port |
|
Power Supply |
DC 12V3A |
|
Antenna |
4 x 3dBi Dualband internal antennas 1 x 3dBi 2.4G DFS internal antenna 1 x 3dBi 5G coverage internal antenna |
|
Dimensions |
71mm*174mm*225mm(W*D*H) |
|
Operating Temperature |
0 ℃~40 ℃ |
|
WAN Type |
Dynamic IP/ Static IP/ PPPoE |
|
Internet Protocol |
IPv4, IPv6 |
|
Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
|
VOIP Features |
One RJ-11 FXS port for connecting to analog telephones, Call forwarding, Call waiting, Call block, 3-way conference call |
|
Management |
Access Control, Local Management, Remote Management |
|
Standard Packing List |
1 x Power Adaptor |
|
1 x NP7287G |
|
|
1 x Ethernet Cable |
